CREATING A CD COVER: Part One

In this tutorial, I’m going to show you how I used several floral stock images and Photoshop brushes to compose a fantastic abstract composition.

Materials Needed:

User: cavada
Password: rm502

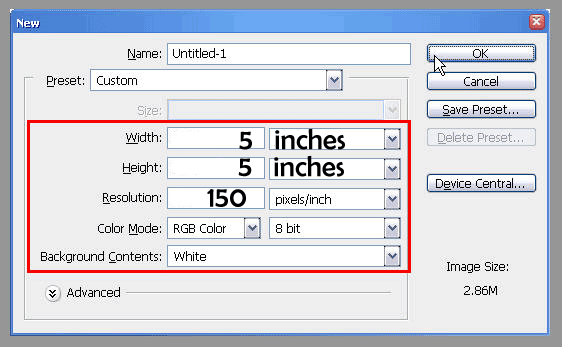

Step 1: Creating a New Document

First of all, create a new document at 5×5 in and use a white background.

Image Description

Step 2: Insert The Fiddle

Make a selection around the violin image. The Easiest way to do this step is by using the Magic Wand tool ( see settings below, make sure you activate the add to Selection button (circled on left) and check the (Contiguous option). Click several times to select all of the background area, which is colored white. Then Inverse the selection (just press Ctrl+Shift+I).

Image Description

Press Ctrl+C to copy the violin (which is now selected), and then paste ( Ctr+V ) it to the document we created before. Adjust the size by using Free Transform Command (Press Ctrl+T).

Image Description

Step 3: Add The Leaf Image

Open the leaf image. Using Polygonal Lasso tool, create selection around the leaf. See image below.

Image Description

When you’re done with selection, copy and paste leaf image over the violin’s layer in the other document. Clear the white color around the leaf by using Magic Wand tool (just click the white color and then press Delete). Deselect by pressing Ctrl+D.

Image Description

Drag the leaf layer (Layer 2) below violin’s layer (Layer 1). Using Free Transform command (Ctrl+T), adjust the size and rotate it to right a bit. Press Enter when you’re done.

Image Description

Step 4: Color Adjustment

Editing would be simpler if we rename layers by it’s content, so feel free to do so. I’ll refer to layers by name to make things simpler from this point on. Just rename layer 1 to "violin" and layer 2 to "leaf".

Select the violin layer, then press Ctrl+L to bring up the Levels dialog. Adjust Input Levels valueas shown below to increase the contrast. Click OK when done.

Image Description

Activate the leaf layer, use the Levels command to make increase the leaf’s contrast. Then use Hue/Saturation (Ctrl+ U) command to adjust leaf’s color to make the greens more vibrant, green, and saturated. See image below for details.

Image Description

Step 5: Arranging Leaves Part.1

Duplicate the leaf layer by pressing Ctrl+J. With the leaf layer copy still selected, adjust the position and rotate it right a bit. See image example below.

Image Description

Repeat this duplicating process until you get 5 leaf layers. Play around with the size, rotation and position of each leaf layers until you get a very nice layout. Remember, we’re using the Free Transform function, so be sure to touch up on the Transform functions if you’re having trouble.

Image Description

Step 6: Shadows and Highlights

Click the original leaf layer (It should be the bottom leaf layer). Select the Burn tool. Pick a soft round brush and adjust the brush diameter around 30 to 40 px. Reduce the Exposure value to 25%. Now use it to create shadows like shown in this example.

Image Description

Now we need to make highlights using the Dodge tool. Make sure you pick a soft round brush and reduce the Exposure value to 25% when doing this.

Image Description

Repeat this process for all of the leaves layer. You should be end with leafs that have much more depth than when we began.

Image Description

Step 7: Duplicating Leaves

This kind of illustration always ends with a lot of layers, so it’s a better idea to keep these layers organized within layer groups. Below, you can see the simplest way to create a layer group and rename them after.

Image Description

Now we’re going to balance the composition by duplicated the leaves on the right of the violin to show on the left as well. Rather than starting from scratch, you can just duplicate the group we just created by right clicking on the leaf right layer group, then choosing Duplicate Group from the popup menu.

Name the layer group duplicate’s: leaf left. With the layer group leaf left still selected, click menu Edit> Transform> Flip Horizontal, all leaf layers should be flipped to the left now. Using the Move tool, drag the layer group leaf left so the leaves are positioned on the violin’s left side.

Image Description

Step 8: Arranging Leaves Part.2

Duplicate layer group leaf left, rename its duplicate to leaf-FL. Drag layer group leaf-FL over the violin layer.

Image Description

Re-arrange the leaves using Move tool and Free Transform command. Try to make the leaves’s layout like the one below. Because the leaves are different from before, you should re-define the shadow and highlight area of each leave. Use Dodge and Burn tool to do this.

Image Description

Duplicate layer group leaf-FL, and then rename the duplicated layer group to leaf-FR . Flip the leaves via menu Edit> Transform> Flip Horizontal. Place these leaves on the bottom right of violin.

Image Description

Step 9: Arranging Leaves Part.3

Duplicate leaf-FL layer group once more, then rename the duplicated group to leaf-BL. Drag this layer group below layer group leaf right.

Image Description

Re-arrange the leaves using Move tool and Free Transform command. Arrange the leaves’s layout like the one below. Again, redefine shadows as needed, and duplicate this group so that there are leaves along the back left and back right of the violin.

Image Description

Step 10: Adding the Rose

Open the rose image again. Select the rose petals, using the pen tool.

When done selecting, copy and paste the rose
image over the leaf-FR layer group. Adjust rose’s size and then place it down with the leaves.

Image Description

Rename layer 3 (rose’s layer) to rose. Bring up the Levels Dialogue (Ctrl+L), then adjust theinput levels value until rose’s color becomes more vibrant as shown below. If you’re not satisfied with the result, use the burn and dodge tools to bring out the shadowns and highlights in the Rose.

Image Description

Step 13: Using Floral Brush

Create a new layer below the violin layer. Name the new layer to floral. Load the Suddendly Spring Brushes and make sure you set the brush Opacity back to 100%.

Image Description

Use these brushes to create some flower shape around the violin. Vary the brush size and shape until you get a nice result.

Image Description

Step 14: Alter the Floral Color

Create a new layer between the floral and violin layer. Name the new layer to floral color. Set foreground color to red and background color to black. Then use Filter> Render> Clouds to create a red and black cloud..

Image Description

To put the clouds inside the flowery shape( floral layer ), simply press Alt+Ctrl+G (make sure you still have the floral color layer selected). Now floral color has become a clipping mask, the clouds will now appear inside the floral shapes.

Image Description

Step 15: Adding Debris

Load the Debris Brush. Then Create a new layer above floral color layer (if the new layer becomes a clipping mask, simply press Alt+Ctrl+G to cancel it). Name the new layer, debris. Use the debris brushes to create some debris around the leaves and violin. For better result, vary the brush size and color so it matches the environment.

Image Description

Step 16: Coloring Background

Grab the Gradient tool. From the option bar, choose foreground to background color and make sure you activate the linear gradient button. Change the foreground color to #C4DF9C and background color to white. Select the background layer, then use Gradient tool to create the gradient (drag it vertically from bottom to top).

Image Description

Step 17: Adding Paper Texture

Load the Crushed Paper Brush. Pick pure pea green (#8dc63f) as the brush color.

Image Description

Show the Brush Pallette by pressing F5. Then open the Brush Tip Shape option. Adjust brush Diameter to 1400px and Change the Angle to 90. Use this brush to create the crushed paper texture (still on the background layer).

Image Description

Step 18: Adding Smoke

Load the Smoke and Ink Brushes. Pick white as the brush color. Now use it to draw some mystic smoke around the violin. If the smoke is too bright, undo your work and then try lowering the brush opacity before you draw the smoke again.

Image Description



Part Two: Making A CD
